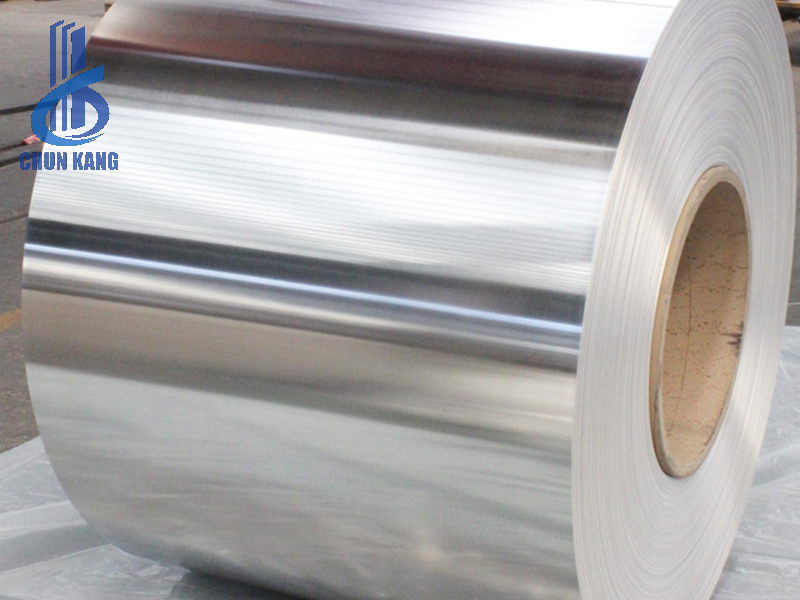

A1Zn6Mg2.5Cu1.5/7075 Aluminum Coil

Product Description:

Aluminum coil is the thickness of 0.2mm to 500mm below, width of 200mm or more, length of less than 16m aluminum material is called aluminum coil, 0.2mm or less for aluminum, 200mm width within the row or strip (of course, with the advancement of large equipment, the widest can be 600mm aluminum plate is more).

Consulting Products:

8614763539656

cnsteel@chunkang.ltd

8617863581589

cncksteel@chunkang.ltd

Product Details

Product Name	Aluminium coil(sheet)
Material	1050,1060,3003, 3A21,5052.5005.5083.5A05,6061
Technical Standard	JIS G3141,DIN1623,EN10130
Sheet	0.15 mm- 2.0mm
Normal sheet	2.0mm-6.0mm
Medium plate	6.0 mmt-25.0mm
Plate	25mm-200mm
Super thick plate	more than 200mm
Quality	Approved by SGS,ISO
Width	914 mm, 1000, 1200, 1220mm or as customer's requirement
Length	2000-30000mm
Surface Finish	flat, stucco embossed, corrugated, smooth or orange peel embossed
Facing	compound with kraftpaper or Polysurlyn or Polykraft
Package	Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement
Payment terms	T/T, L/C at sight,West Union,D/P,D/A,Paypal
Delivery time	7-15 Days

Chemical Composition:

Alloy	%Si	%Mg	%Mn	%Cu	%Fe	%Cr	%Zn	%Ti	%Others	%Al
EN AW-1050 A	0.25Max	0.05Max	0.05Max	0.05Max	0.40Max	–	0.07Max	0.05Max	–	99.5 Min
EN AW-1070 A	0.20Max	0.03Max	0.03Max	0.03Max	0.25Max	–	0.07Max	0.03Max	–	99.7 Min
EN AW-1100	Si+Fe 0.95 Max	–	0.05 Max	0.05 – 0.20	–	–	0.10 Max	0.05 Max	–	99.0 Min
EN AW-2011	0.40 Max	–	–	5.00 – 6.00	0.70 Max	–	0.30 Max	–	Bi : 0.20 – 0.60Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	0.20 – 0.80	0.40 – 1.20	3.90 – 5.00	0.70 Max	0.10 Max	0.25 Max	0.15 Max	–	Remainder
EN AW-2024	0.50 Max	1.20 -1.80	0.30 – 0.90	3.80 – 4.90	0.50 Max	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	–	1.00 – 1.50	0.05 – 0.20	0.70 Max	–	0.10 Max	–	0.15 Max	Remainder
EN AW-3103	0.50 Max	0.30 Max	0.90 – 1.50	0.10 Max	0.70 Max	0.10 Max	0.20 Max	0.10 Max	–	Remainder
EN AW-6101A	0.30 – 0.7	0.40 – 0.90	0.03 Max	0.05 Max	0.40 Max	–	–	–	0.10 Max	Remainder
EN AW-6005	0.60 – 0.90	0.40 – 0.60	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6351	0.70 – 1.30	0.40 – 0.80	0.40 – 0.80	0.10 Max	0.50 Max	–	0.20 Max	0.20 Max	0.15 Max	Remainder
EN AW-6060	0.30 – 0.60	0.35 – 0.60	0.10 Max	0.10 Max	0.10 – 0.30	0.05 Max	0.15 Max	0.10 Max	–	Remainder
EN AW-6061	0.40 – 0.80	0.80 – 1.20	0.15 Max	0.15 – 0.40	0.70 Max	0.04 – 0.35	0.25 Max	0.15 Max	–	Remainder
EN AW-6063	0.20 – 0.60	0.45 – 0.90	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6082	0.70 – 1.30	0.60 -1.20	0.40 – 1.00	0.10 Max	0.50 Max	0.25 Max	0.20 Max	0.10 Max	–	Remainder

Mechanical Properties:

Alloy	Temper	UTS (Mpa)		Yield Strength (Mpa)		Elongation (%)
		Minimum	Maximum	Minimum	Maximum	A 50mm (Minimum)
EN AW-1050 A	F	60	–	20	–	23
EN AW-1050 A	O	60	95	20	–	23
EN AW-1070 A	F	60	–	20	–	23
EN AW-1100	O	75	110	–	–	25
EN AW-2011	T4	275	–	125	–	12
EN AW-2011	T6	310	–	230	–	6
EN AW-2014	O	–	250	–	135	10
	T4	370	–	230	–	11
	T6	415	–	370	–	5
EN AW-2024	O	–	250	–	150	10
	T3,T3510,T3511	395	–	290	–	6
	T8,T8510,T8511	455	–	380	–	4
EN AW-3003	F	95	–	35	–	20
EN AW-3003	O	95	135	35	–	20
EN AW-3103	F	95	–	35	–	20
EN AW-3103	O	95	135	35	–	20
EN AW-6101A	T6	200	–	170	–	8
EN AW-6005	T4	180	–	90	–	13
EN AW-6005	T6	270	–	225	–	6
EN AW-6351	O	–	160	–	110	12
	T4	205	–	110	–	12
	T6	290	–	250	–	6
EN AW-6060	T4	120	–	60	14	12
	T5	160	–	120	–	6
	T6	190	–	150	–	6
	T64	180	–	120	–	10
	T66	215	–	160	–	6
EN AW-6061	O	–	150	–	110	14
	T4	180	–	110	–	13
	T6	260	–	240	–	6
EN AW-6063	O	–	130	–	–	16
	T4	130	–	65	–	12
	T5	175	–	130	–	6
	T6	215	–	170	–	6
	T66	245	–	200	–	6
EN AW-6082	O	–	160	–	110	12
	T4	205	–	110	–	12
	T5	270	–	230	–	6
	T6	290	–	250	–	6
